Scope of delivery

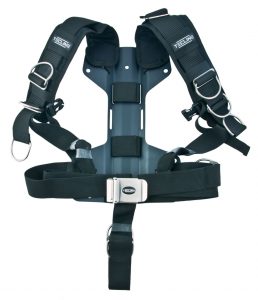

The TECLINE COMFORT HARNESS, as well as LADY COMFORT HARNESS are delivered in complete sets, ready for assembly:

Unlike a standard, DIR Harness, the comfort harness consists of:
3 main belts + crotch strap.

These parts are assembled as follows :

VIDEO MANUALS:

Comfort Harness Standard
Comfort Harness Lady Edition

Step 1 - Shoulder Belt​

  • First, insert the belt part with the grommet from the back side of the plate through the left and right angular slots.
  • The grommet must remain centred over the backplate hole.
comfort harness assembly step 1

Step 2 - Right Shoulder Pad

• Hold the right shoulder pad in front of the backplate, so the Tecline logo faces away from it.

• Lead the right part of the shoulder belt through the top flap in the shoulder pad and then back through the upper horizontal slot in the backplate.

comfort harness assembly step 2.1



• Flip the right part of the shoulder belt forward, and lead it through the second flap in the shoulder pad.

comfort harness assembly step 2.2
  • Below the TecLine logo, there are 3 more flaps in the shoulder pad.
    Lead the right part of the shoulder belt through the first flap.
  • Install a bent D-ring above the
    middle flap.
  • Run the shoulder belt through the
    third flap.
comfort harness assembly step 2.3

Step 3 - Right Pull Ring

  • Lead the belt up through the moving part of the pull ring and then through the pull ring itself.
comfort harness assembly step 3.1
  • Fold the belt back through the shoulder pad, the way it came down (through the third flap, through the D-ring and through the first flap).
  • You might need to use a pair of pliers to pull the belt through the Dring again.
comfort harness assembly step 3.2
  • Finally, hide the belt end under the
    flap with the Tecline logo.
comfort harness assembly step 3.3

Step 4 - Pull Belt

  • Turn the belt, so the seam faces
    downwards.
comfort harness assembly step 4.1
  • Lead the end of the pull belt upwards through the pull ring, over
    the cross strut.
comfort harness assembly step 4.2
  • Then, lead the belt end downwards
    through the moving part of the pull
    ring.
  • Install the two rubber pieces to
    support a backup lamp.
  • Route the belt end through the inner
    backplate slot at the bottom.
comfort harness assembly step 4,5
  • On the back side, fix the belt with a
    tri-glide and lead it through the
    outer slot.
comfort harness assembly step 4.6

Step 5 - Left Shoulder Pad

  • Mount the shoulder pad on the left shoulder belt, as described in step 2.

  • Lead the belt through the second flap, and install the inflator bungee.
comfort harness assembly step 5.1
  • Install the angular D-ring, the pullring and the pull belt like on the right side.
comfort harness assembly step 5.2
  • Place two rubber pieces on the pull belt.
  • Route the pull belt through the slots at the bottom (with fixation).
  • Put the movable Dring in a desired place.
comfort harness assembly step 5.3
  • Secure the buckle.
comfort harness assembly step 5.4

Step 6 - Crotch Strap

  • The remaining rubber band should be placed on the belt.
  • Lead the belt end upwards through the horizontal slot at the bottom of the backplate (from back to front).
  • Run the belt end through the rubber piece, through the backside D-ring and back through the rubber piece.
comfort harness assembly step 6

Step 7 - Personalization

Adjust the harness to the diver, by pulling the left and right belt through the tri-glides on the back.

Should the belt be too long, you may cut it to length. In this case, be sure to melt the cut belt edge with a lighter, in order to avoid fraying.

You may also fold back the overlapping belt end to the left and secure this end to the belt with a bungee.
